Electrostatic discharge (ESD) poses a critical threat to high-value components in semiconductor, pharmaceutical, and electronics manufacturing. Even a 250–500 V discharge—common in an operator walking across a low-humidity floor—can damage sensitive die or PCB assemblies. In this post, we’ll explore how anti-static, static-dissipative cleanroom swabs from Teknipure integrate into a robust ESD control strategy, supported by data-driven best practices and industry standards.

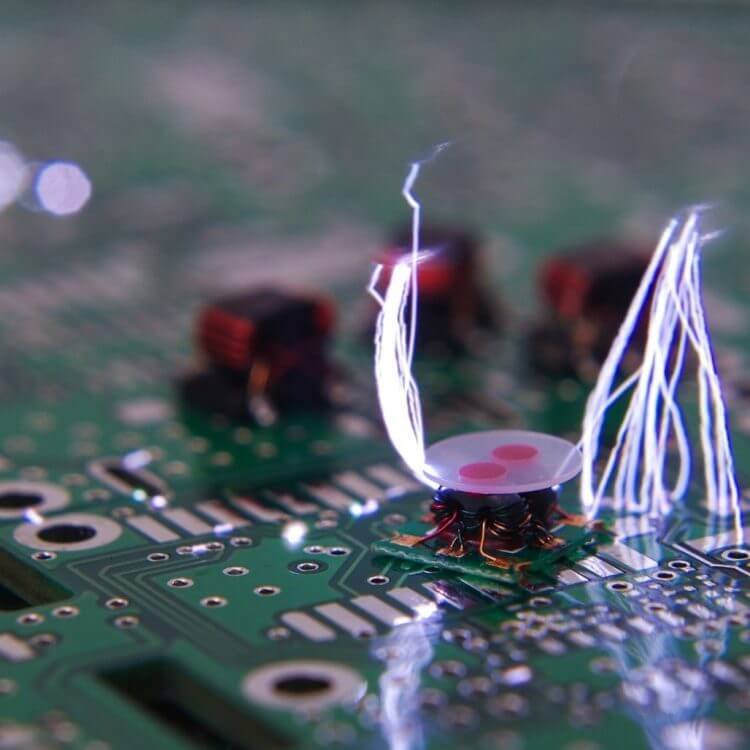

The Risks of Electrostatic Discharge (ESD)

In critical manufacturing environments, ESD immunity thresholds for PCBs and semiconductors often range from 250–500 V (per IEC 61000-4-2). However, in typical cleanrooms at < 30 % RH, operators walking across a non-ESD floor can accumulate 5,000–35,000 V of charge (ISO 14644-5). This voltage far exceeds component tolerance:

• Real-World Impact: A leading 300 mm wafer fab documented a 12 % spike in post-assembly yield losses after an unexpected drop in ambient humidity from 45 % to 20 %.
• Cost of Failure: One latent defect in a semiconductor wafer can cost up to $5,000 in rework, scrap, and downtime. Over a year, unchecked bench-top ESD events can total six figures in lost throughput.
• Invisible Damage: Up to 30 % of ESD damage remains latent, only discovered during final stress testing—by then, affected units require full rework or disposal.

ESD Control Best Practices

Effective ESD control is multi-layered. No single tactic guarantees zero failures, so combine methods as part of a comprehensive program. Below is a comparison of common strategies:

ESD Control Measure	Primary Benefit	Limitations	Typical Cost
ESD Floor Mats & Workstation Mats	Reduces bench voltage by ≈80 %	Requires annual verification; may degrade over time	$50–$150 per station
Wrist Straps & Heel Grounders	Immediate charge dissipation from operator	Only protects personnel; requires strict wear compliance	$10–$20 per strap/set
Air Ionizers	Neutralizes charges on non-conductive surfaces	Needs periodic calibration; noisy in quiet labs	$500–$1,500 per unit
Controlled Humidity (30–50 % RH)	Reduces triboelectric charge generation	High HVAC cost; seasonal maintenance	Varies by facility size
Anti-Static / ESD Cleanroom Swabs	Eliminates tip-induced discharges during cleaning & sampling	Incremental per-unit cost vs. standard swab ($0.10–$0.35)	$0.10–$0.35 per swab

While mats, wrist straps, ionizers, and humidity control form the core of an ESD program, anti-static swabs address a hidden but frequent source of ESD: bench-top cleaning, adhesive application, and sampling in narrow or recessed areas. Below, we explain why swabs are a non-negotiable item in your ESD toolkit.

Why Anti-Static Swabs Are a Must-Have

Standard polypropylene or wooden-shaft swabs frequently accumulate charge during contact with electronic assemblies. When used inside an Electrostatic Protected Area (EPA), these can discharge directly onto a live circuit or a partially assembled PCB, triggering a micro-arc event. In contrast, Teknipure anti-static cleanroom swabs feature specialized static-dissipative materials:

• Shaft Composition: Static-dissipative polypropylene or carbon-impregnated cores with surface resistivity of 10⁵–10⁷ Ω/sq (per ASTM D257).
• Tip Materials:
  • ESD Microfiber: 99 % lint-free, ideal for high-magnification optics cleaning.
  • ESD Foam: Conductive, low-profile foam for solvent sampling (IPA, acetone, ketones, acids, bases).
  • Knitted Polyester: Static-dissipative knit for non-abrasive surface validation in ISO Class 5–7.
• Sterility & Packaging: Individually wrapped, gamma-irradiated options available. Meets ISO 14644-1 Class 5 for biopharma, FMCG labs, and medical device assembly.

Integration into Your ESD Program

To fully leverage anti-static swabs, follow these steps:

1. Audit Current Workflows: Identify tasks where operators use standard swabs for cleaning, adhesive application, or post-assembly sampling. Typical stations include:
   • PCB post-solder cleaning benches
   • Optics/alignment stations in photolithography
   • Final assembly quality-check stations
2. Select the Right Swab for Each Task:
   • Microfiber ESD Swabs (Surface resistivity: 10⁵–10⁶ Ω/sq): For precision optics cleaning where particle release must be < 1.0 mg/m³.
   • ESD Foam Swabs (Conductive foam density: 30 ppi): For solvent sampling—compatible with IPA, acetone, and common lab solvents.
   • Static-Dissipative Polyester Swabs: For routine surface validation in ISO Class 5–7 areas.
3. Train Operators & Enforce Compliance:
   • Include swab selection and usage guidelines in your ESD standard operating procedures (SOPs).
   • Conduct quarterly audits to ensure personnel replace standard swabs with ESD-safe swabs.
4. Monitor & Measure:
   • Track yield loss and latent defect reports before and after implementing ESD swabs.
   • Log ESD event counts in your EPA using in-line sensors; aim for ≤ 2 events/month per station.

Next Steps & Resources

Take proactive steps today to protect your yields and reduce latent defects:

• Browse Teknipure Cleanroom Supplies
• Request a Swab Sample

FAQ

Q: How do Teknipure anti-static swabs dissipate charge?

A: The static-dissipative polypropylene shaft (10⁵–10⁷ Ω/sq) and conductive foam or microfiber tip provide a direct discharge path, preventing tip-induced ESD events. All swabs are tested per ASTM D257 and IEC 61000-4-2.

Q: In which cleanroom classes can I use these swabs?

A: All Teknipure ESD swabs are packaged in ISO 14644-1 Class 5 environments and are suitable for Class 5–8 cleanrooms. Sterile, gamma-irradiated options meet USP <797> requirements for aseptic compounding.

Q: What solvents are compatible with ESD foam swabs?

A: Teknipure ESD foam core and tip materials resist degradation in IPA, acetone, toluene, ketones, acids (pH ≥ 2), and bases (pH ≤ 12). Always verify compatibility in shelf-life testing for critical assays.
